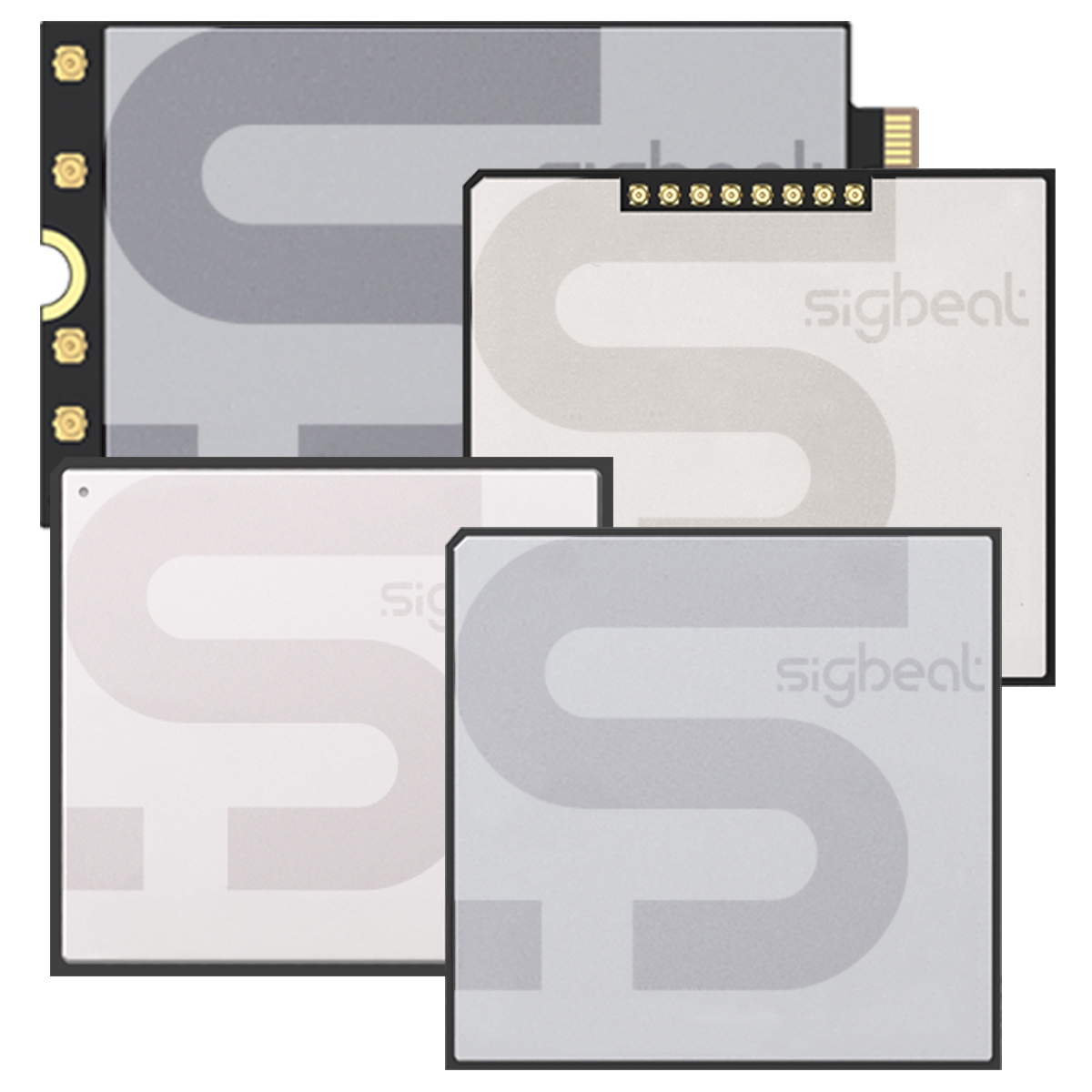

Sigbeat 5G modules are high-performance 5G modules designed to deliver ultra-fast data speeds and low latency for next-generation applications. With its powerful connectivity capabilities, Sigbeat 5G enables seamless communication and real-time processing, making it perfect for smart cities, autonomous vehicles, and advanced IoT solutions.
|
Specification
|

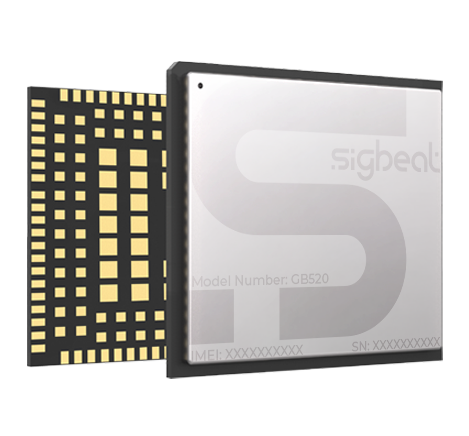

GB520
|
GB530
|

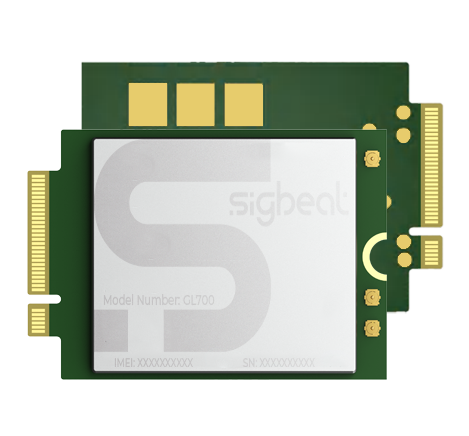

GL700
|

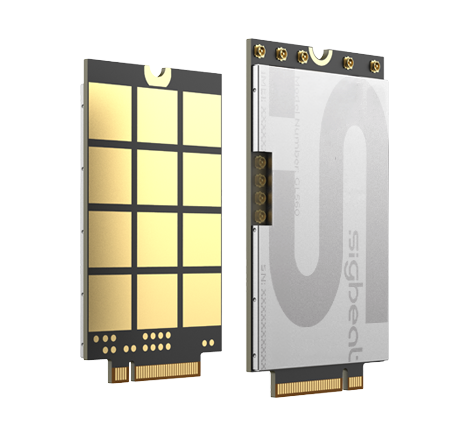

GL560
|
|---|---|---|---|---|
|
5G Category
|
5G Sub-6 + LTE Cat 19
|
5G Sub-6 + LTE Cat 20
|
||
|
3GPP Release
|
Release 16
|
Release 17
|
||
|
Processor
|
Qualcomm SDX62
|
Qualcomm SDX72
|
Qualcomm SDX35
|
Qualcomm SDX85
|
|
Max 5G Downlink
|
3.4 - 3.5 Gbps
|
4.14 Gbps
|
220 Mbps
|
12.5 Gbps
|
|
Max 5G Uplink
|
550 - 900 Mbps
|
900 Mbps
|
3.7 Gbps
|
3.7 Gbps
|
|
Max LTE Downlink
|
Cat 19
|
Cat 20
|
200 Mbps
|
2 Gbps
|
|
Max LTE Uplink
|
-
|
-
|
75 Mbps
|
200 Mbps
|
|
MIMO Support
|
DL 4x4 / UL 2x2
|
DL 4x4 / UL 2x2
|
-
|
Advanced (multi-antenna)
|
|
GNSS
|
GPS / Beidou / Glonass / Galileo
|
Same
|
Same
|
Same
|
|
-
|
-
|
-
|
On-chip AI, Discrete AI Co-processor (10-40 TOPs)
Uplink Carrier Aggregation, Uplink TX switching |
|
|
Package Type
|
B2B (M2500)
|
B2B (M3100)
|
LGA 204-pin or M.2
|
LGA 592-pin or M.2
|
|
Size (mm)
|
60 × 40 × 3
|
46.5 × 60
|
29 × 32 × 2.4
|
53 × 56 × 2.95
|
|
USB
|
USB 3.1
|
USB 3.1
|
USB 2.0/3.0/3.1
|
USB 3.1
|
|
PCle
|
PCIe 3.0 (x3)
|
PCIe Gen4 x1 + Gen3 x3
|
PCIe Gen3
|
PCIe Gen4 x1 + Gen3 x3
|
|
Ethernet / USXGMII
|
USXGMII x2
|
USXGMII x2
|
-
|
USXGMII x2
|
|
SIM
|
Dual SIM
|
Dual SIM
|
SIM
|
Dual SIM
|
|
Protocol Stack
|
RNDIS / NDIS / IPv4 / IPv6 / TCP / UDP
|
Same
|
RNDIS / NDIS / IPv4 / IPv6 / TCP / UDP
|
RNDIS / NDIS / IPv4 / IPv6 / TCP / UDP
|
|
Operating Temp (Std)
|
-30°C to +75°C
|
-30°C to +70°C
|
-30°C to +75°C
|
-10°C to +55°C
|
|
Extended Temp
|
-40°C to +85°C
|
-40°C to +85°C
|
-40°C to +90°C
|
-
|
|
Power Input
|
3.3V – 4.3V
|
3.3V – 4.35V
|
3.3V – 4.35V
|
3.3V – 4.35V
|
|
Target Tier
|
High-performance 5G
|
Premium 5G (Rel.17)
|
Mid-tier / RedCap IoT
|
Ultra-high-performance + AI
|
