4G LTE / IoT

Versatile 4G LTE/ IoT modules that ensure seamless and reliable connectivity for all your IoT devices. Designed for efficient data streaming and robust network performance, these modules are the ideal solution for smart cities, industrial automation, and remote monitoring applications, offering unmatched reliability and low power consumption.

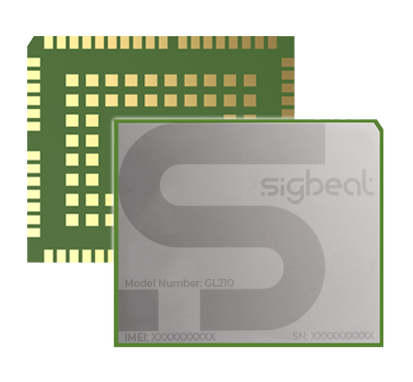

Sigbeat

GL210

LTE/IoT 4G Module (CAT1 Bis)

4G LTE Cat 1 bis
19.9 x 23.6 x 2.4 mm
Downlink of up to 10 Mbps and an uplink of up to 5 Mbps
Qualcomm QCX216
LGA (126 pin)
Operating temperature range: -30 °C to +75 °C
GPS/Location Services

Asset Trackers
Telematics
Security & Alarm Systems
Payment Systems
Smart Meters
Smart City Lighting & Parking
Healthcare
TMO, AT&T, VZW Approved

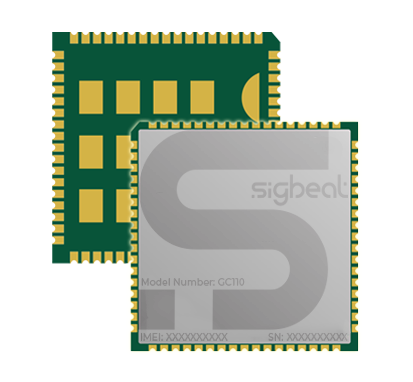

Sigbeat

GC110

LTE/IoT 4G Module (CATM & NB-IoT)

LCC + LGA (Hybrid)
4G LTE Cat M
21 x 20 x 2.3mm, weight: 3g
LTE Cat M1 - DL：588Kbps/UL: 1119Kbps
LTE Cat NB2 - DL:127Kbps/UL 158.5Kbps
Qualcomm MDM9205
GPS/Location Services
Operating temperature range: -35 °C to +75 °C

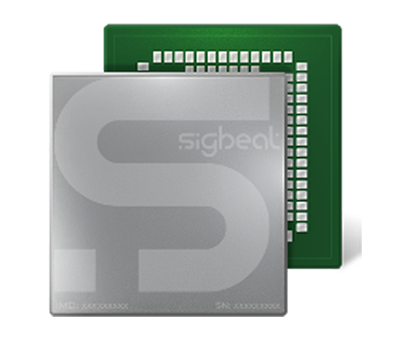

Sigbeat

GC211

LTE/IoT 4G Module (CAT1)

4G LTE Cat 1
21 x 20 x 2.3mm, weight: 3g
LTE-FDD (Cat.1): Max 10Mbps(DL)/5Mbps(UL)
LTE-TDD (Cat.1): Max 8.96Mbps(DL)/3.1Mbps(UL)
Qualcomm MDM9207
LCC 80pin+LGA 64pin or mPCIe
Operating temperature range: -45 °C to +90 °C

Industrial Gateways
eHealth
Utilities
Smart Factories
Machine Telematics
EV Charging & Infrastructure
Tracking

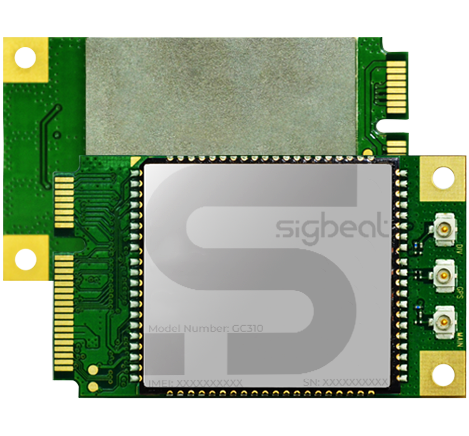

Sigbeat

GC310

LTE/IoT 4G Module (CAT4)

4G LTE Cat 4
L 29 x W 32 x 2.9 T / 5g
LTE-FDD (Cat.4): Max 150Mbps(DL)/50Mbps(UL)
LTE-TDD (Cat.4): Max 130Mbps(DL)/35Mbps(UL)
Qualcomm MDM9207
LCC 80pin+LGA 64pin or mPCIe
GPS/Location Services
Operating temperature range: -45 °C to +90 °C

Industrial Gateways
eHealth
Utilities
Smart Factories
Machine Telematics
EV Charging & Infrastructure
Tracking
AT&T, VZW Approved

4G LTE/IOT Modules Comparison

Specification	GL210	GC110	GC211	GC310
LTE Category	Cat 1 bis	Cat M1 / NB2	Cat 1	Cat 4
3GPP Release	-	Release 14	-	-
Processor	Qualcomm QCX216	Qualcomm MDM9205	Qualcomm MDM9207	Qualcomm MDM9207
Max LTE Downlink	10 Mbps	588 Kbps (Cat M1) 127 Kbps (NB2	10 Mbps	150 Mbps
Max LTE Uplink	5 Mbps	1119 Kbps (Cat M1) 158 Kbps (NB2)	5 Mbps	50 Mbps
2G / 3G Fallback	-	GPRS	Full 3G/2G	Full 3G/2G
GNSS	GPS (antenna interface)	GPS	GPS / Beidou / Glonass / Galileo	GPS / Beidou / Glonass / Galileo
Package Options	LGA (126 pin)	LCC + LGA	LCC + LGA or mPCIe	LCC + LGA or mPCIe
Size (mm)	19.9 x 23.6 x 2.4	21 x 20 x 2.3	32 x 29 x 2.8	29 x 32 x 2.9
USB	USB 2.0	USB 2.0	USB 2.0	USB 2.0
UART	3× UART	1× UART	4× UART	4× UART
SPI	3x SPI	-	-	-
I2C	1x I2C	1x I2C	1x I2C	1x I2C
SDIO	-	-	2x SDIO	2x SDIO
SIM Support	Yes	Yes	Yes	Yes
Protocol Stack	TCP, UDP, MQTT, HTTP/HTTPS, LwM2M, CoAP	TCP/IP, MQTT, CoAP, LwM2M, DTLS, HTTP	TCP, UDP, HTTP, FTP, PPP, MQTT, SSL	TCP, UDP, HTTP, FTP, PPP, MQTT, SSL
FOTA Support	Yes	Yes	Yes	Yes
Operating Temp	-30°C to +75°C	-35°C to +75°C	-40°C to +85°C	-40°C to +85°C
Extended Temp	-	-	-45°C to +90°C	-45°C to +90°C
Power Range	3.5V – 4.2V	3.3V – 4.2V	3.3V – 4.35V	3.3V – 4.35V
Carrier Status	TMO / VZW in process	TMO / AT&T / VZW planned	-	AT&T / VZW approved

Connecting Innovation. Sigbeat is at the forefront of wireless technology, offering state-of-the-art 4G/5G modules and AI-powered solutions that drive innovation and connect the world.
